How to set up Load Balancers in a Private Network

How to set up Load Balancers with Private Network

The Private Network feature of the managed Load Balancer product lets you configure your Load Balancer with a Private Network. Private Networks allow your cloud resources to communicate in an isolated and secure network. Load Balancers using private networks can communicate with your backend servers without using the public Internet. You can add your Load Balancer to one or multiple existing Private Networks. The feature supports both static IP and DHCP configuration for the Load Balancer IP in the Private Network.

Requirements

You have created:

Attaching a Private Network to Your Load Balancer

Note: The following steps require that you have already created a managed Load Balancer and a Private Network in your account.

1 . Click Load Balancer in the Network section of the side menu.

2 . The Load Balancer dashboard displays. Click on the Load Balancer that you want to add to a Private Network.

3 . The Load Balancer’s overview page displays. Click the Private Network tab.

4 . Click Attach a Private Network. A pop up displays.

5 . Select the Private Network to attach from the drop down list, then choose the IP configuration for your load balancer. You can choose either dynamic configuration using DHCP or static IP configuration.

With dynamic configuration, a DHCP server in your Private Network will automatically assign the IP configation to your first and secondary Load Balancers. When using static configuration, you can manually assign two IP addresses from your network’s IP space to the first and the secondary Load Balancers.

6 . Click Attach Private Network to validate the form. The Private Network is attached to the Load Balancer and displays in the Private Network tab.

To attach several Private Networks to your Load Balancer repeat the steps above for each of them.

Detaching a Private Network from Your Load Balancer

1 . Click Load Balancer in the Network section of the side menu. The Load Balancer overview page displays.

2 . Click on the Load Balancer that you want to add to a Private Network.

3 . Click the Private Network tab. The list of Private Networks attached to your Load Balancer displays.

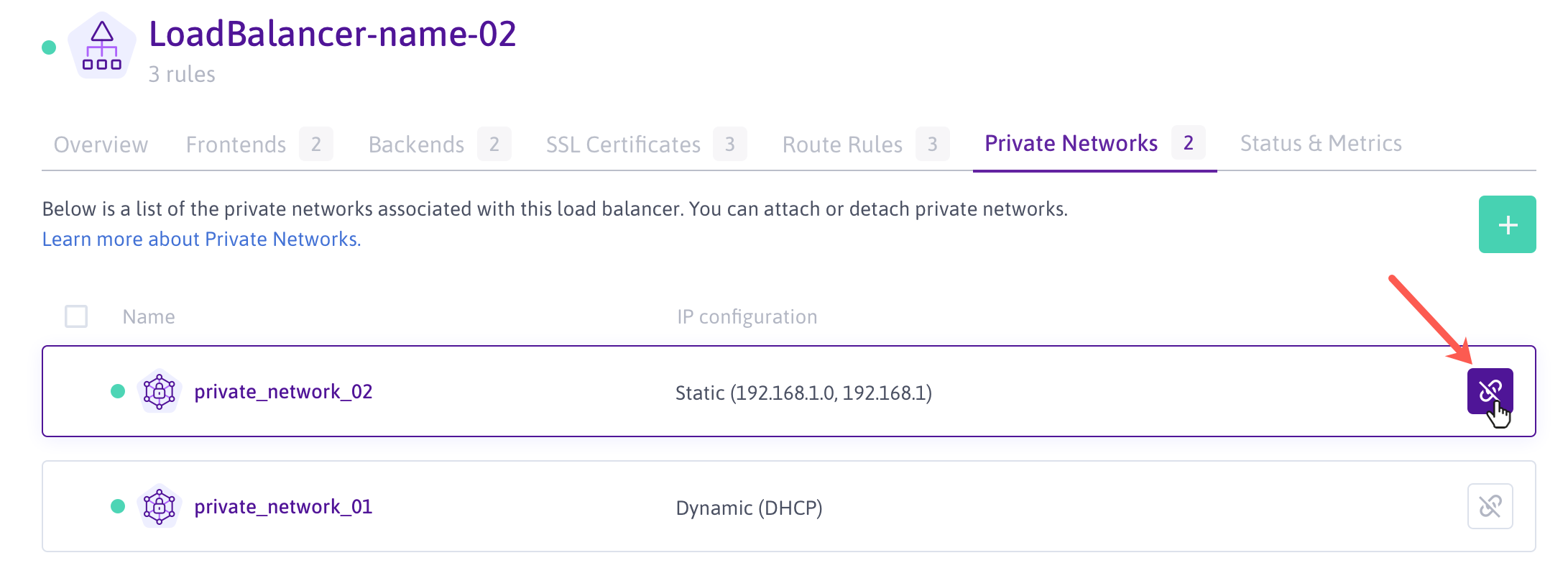

4 . Click the unlink button next to the Private Network that you want to detach from the Load Balancer.

The Private Network is detached from the Load Balancer, and disappears from the Private Network tab.
