How to connect Windows Server to a RPN-SAN

Reviewed on 16 July 2021Published on 16 July 2021

The RPN-SAN is an iSCSI target, it is possible to mount it in Windows Server 2012 or later to use it as a normal disk in the system.

Requirements:
  • You have an account and are logged into the Dedibox Console
  • You have a Dedibox dedicated server running Microsoft Windows Server
  • You have a RPN-SAN

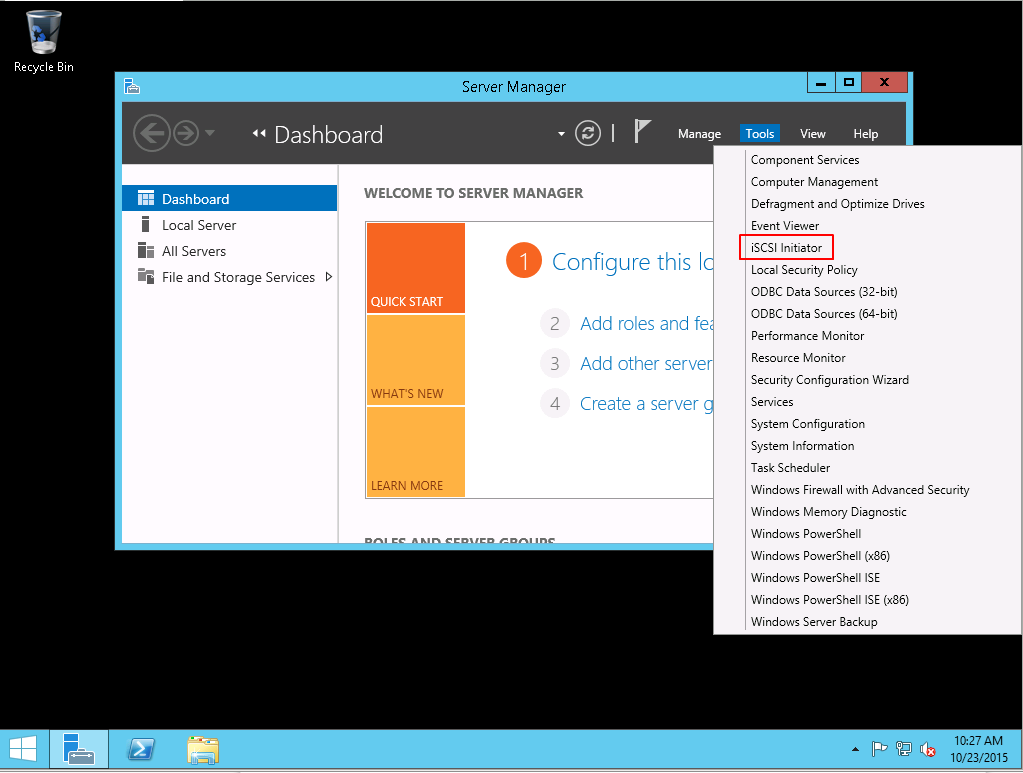

  1. Launch the Server Manager application of Windows and click Tools > iSCSI Initiator.

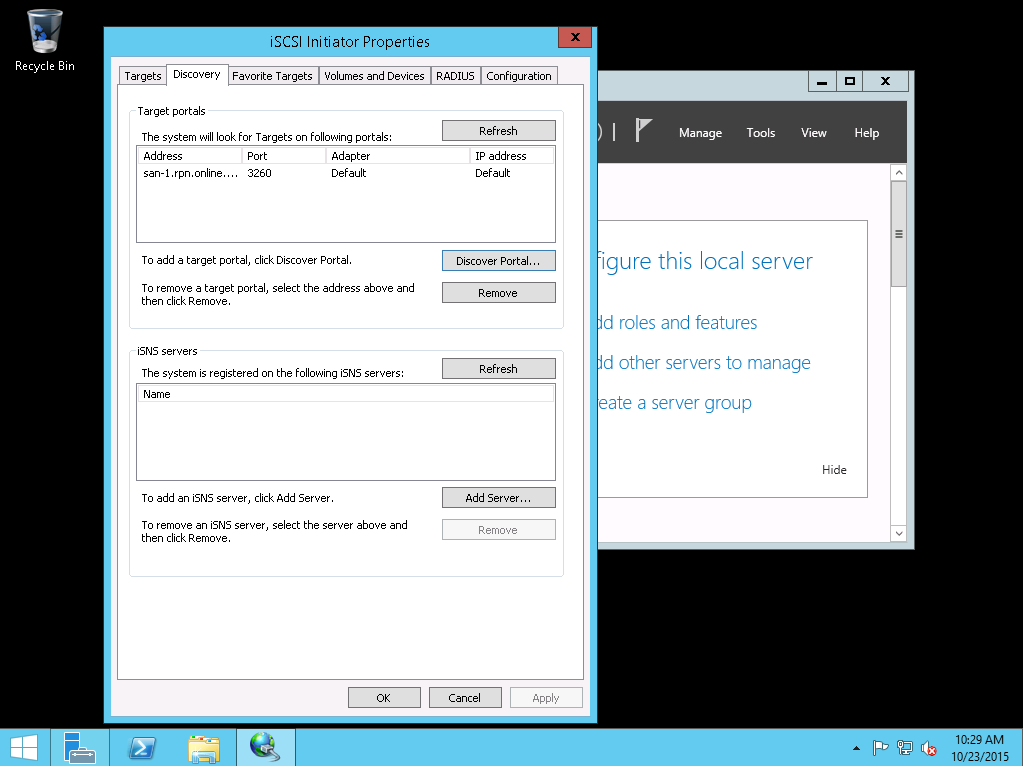

  2. Click the Discovery tab to add the SAN server:

    Tip:

    The initiator is not activated by the default on the system start. If you start it for the first time, you are asked if you want to start it during the system start. Click yes to confirm.

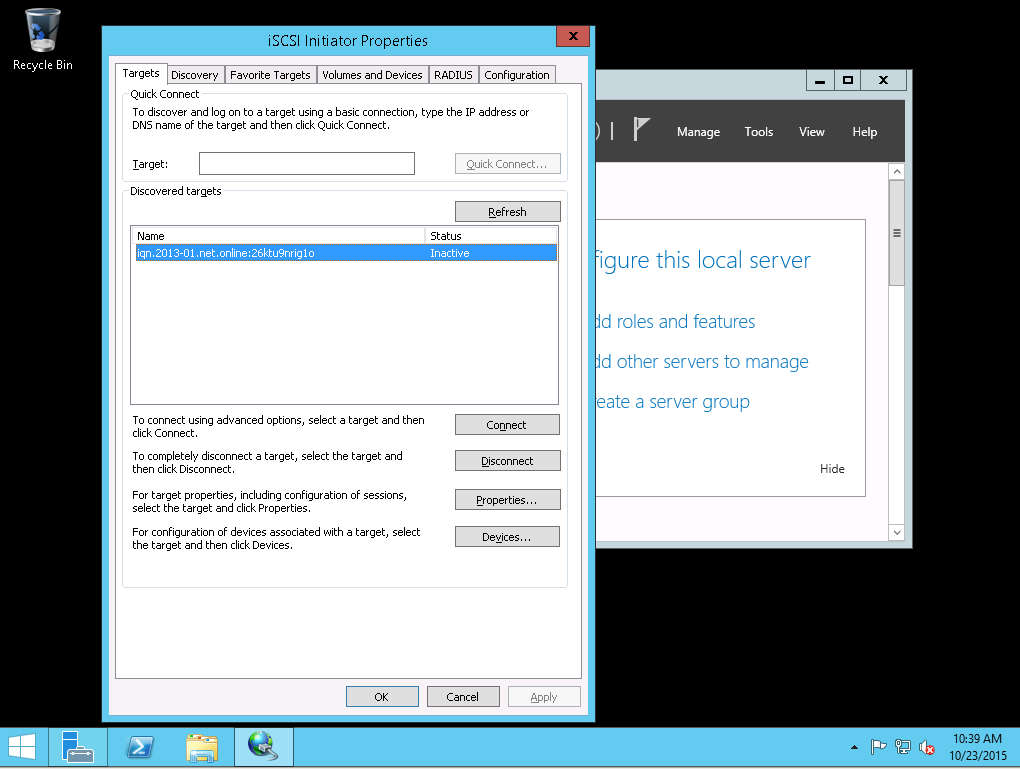

  3. Click the Targets tab and select the target you wanr to connect to. Click Connection to confirm. The target will then be connected to the the server as an unformatted disk.

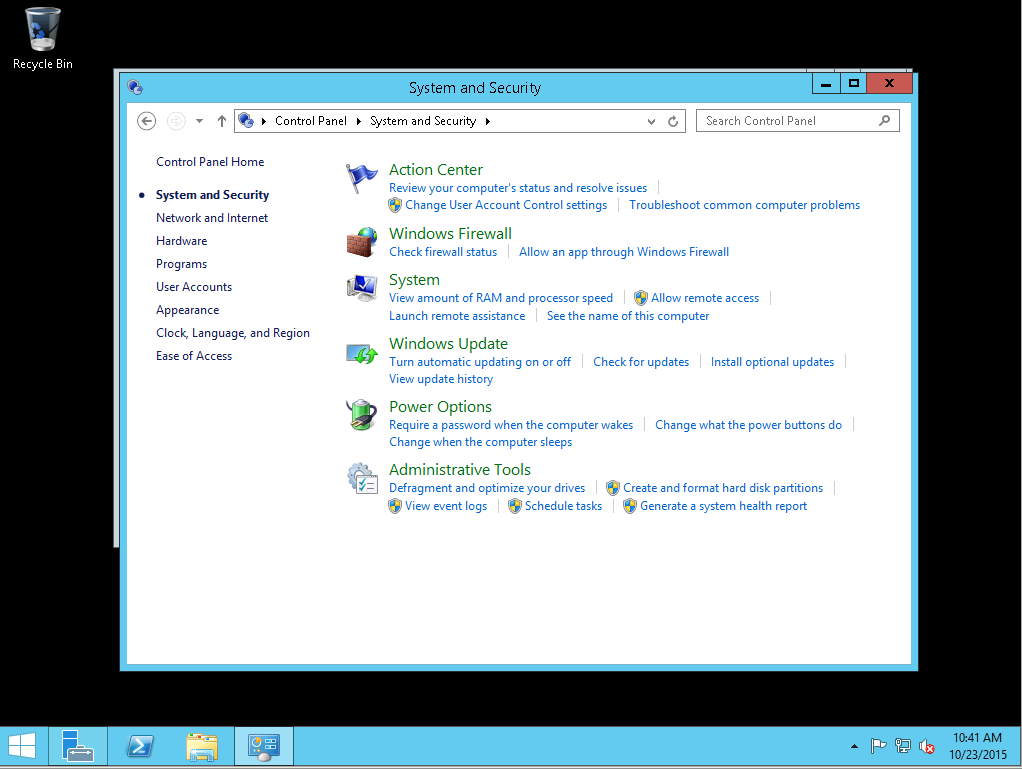

  4. Launch the control panel and click System and Security > Create and format hard disk partitions in the Administrative Tools section.

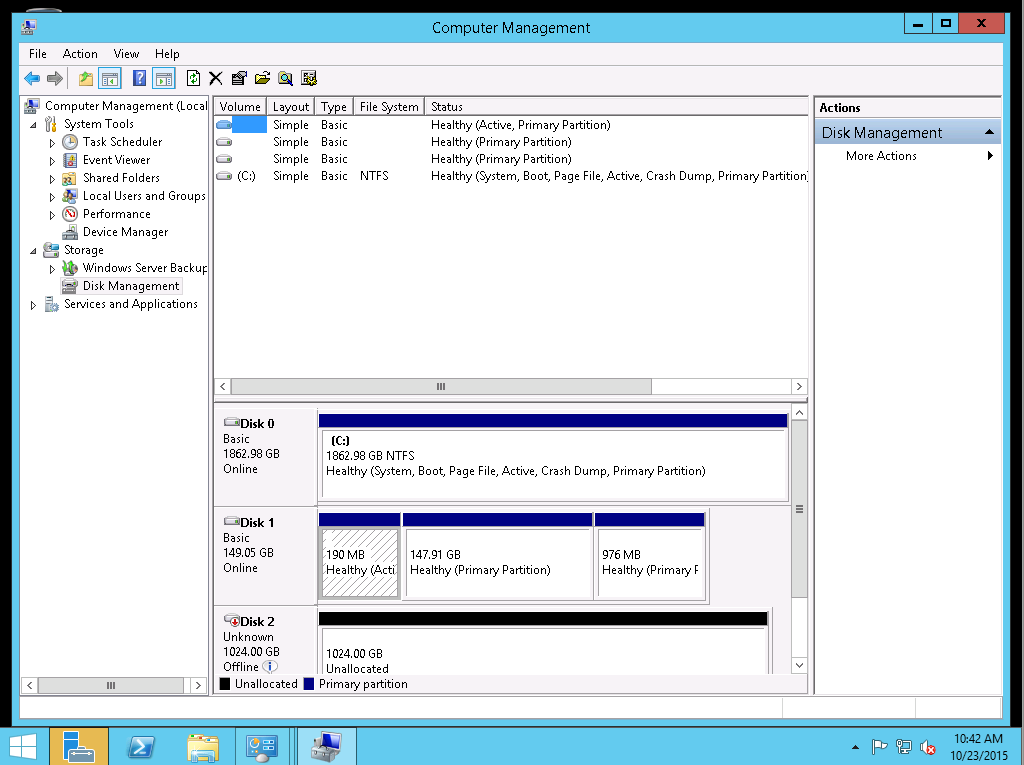

  5. The disk can be configured from the Storage > Disk Management section of the Computer Managemet tool. By default it displays as offline.

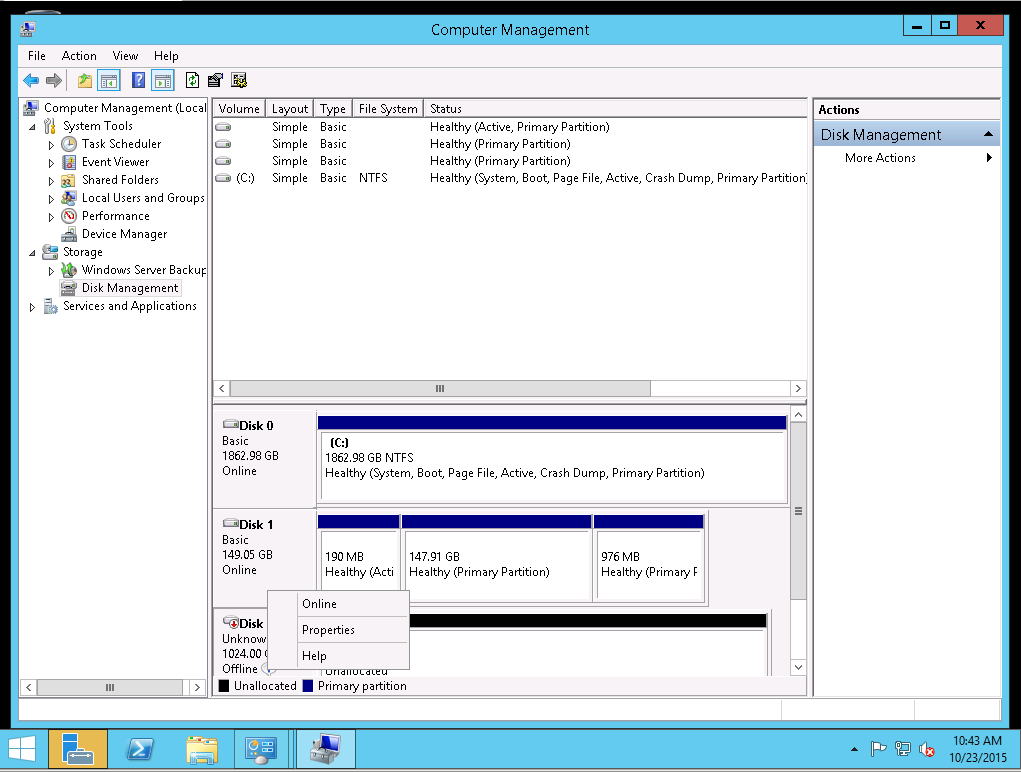

  6. Right-click on it and click Online to activate the disk. The system will propose the type of partition table to use for your disk.

    Tip:

    For a 1 TB SAN, keep the default choice. If you have a larger SAN, select GPT, Windows can not handle partitions larger than 2 TB with anything except GPT.

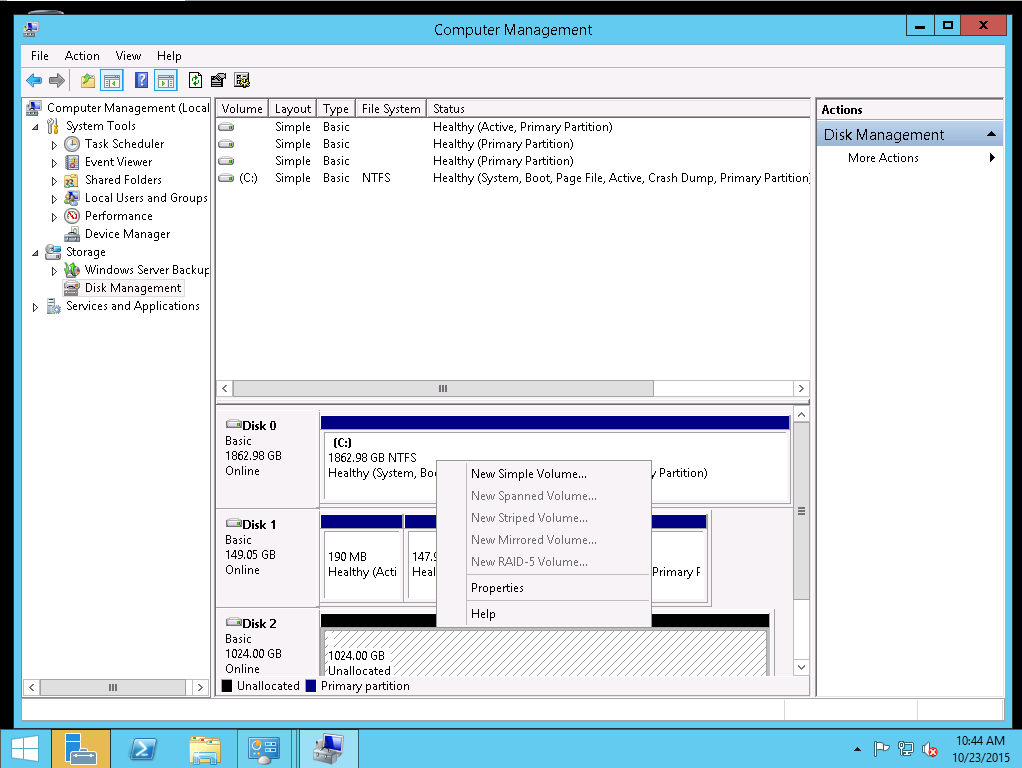

  7. Format the disk with a file system (NTFS). Click Next > Finish to confirm formating the disk.

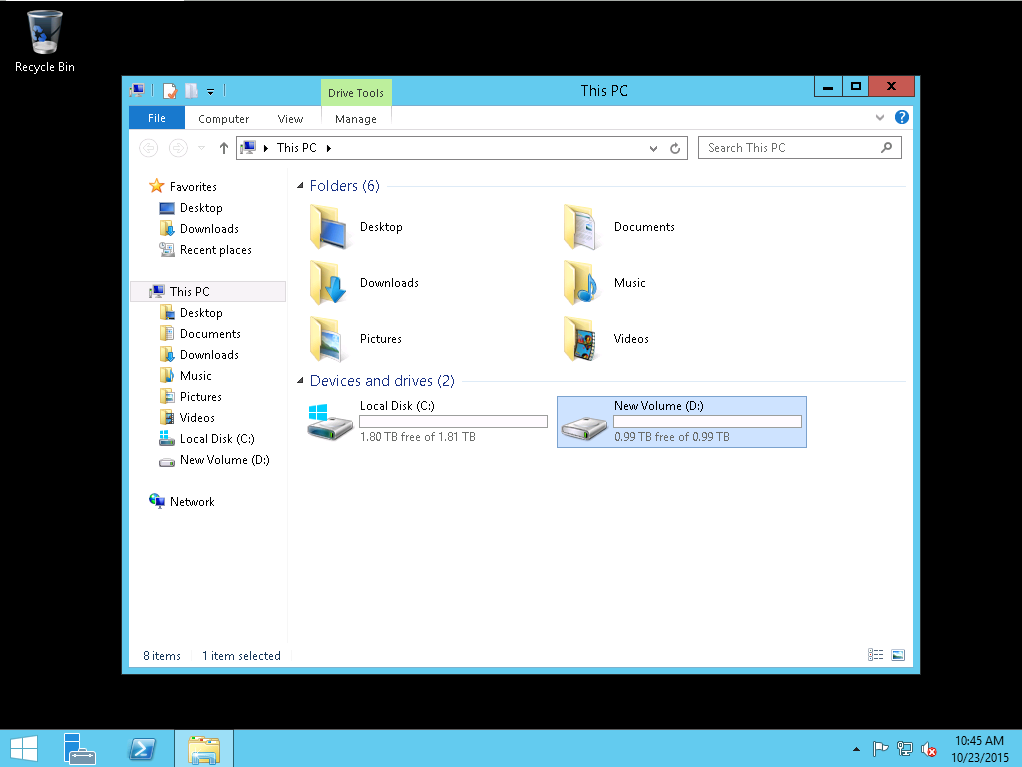

Once finished formatting (in about 10 minutes using quick formatting), the hard disk drive should be accessible from the server manager as a regular disk:
